Open Cup Flash Point Tester
An automatic ASTM D92 open cup flash point tester with a measurement range up to 400°C.
It integrates automatic ignition, flash detection, atmospheric pressure correction, cooling, and result printing for reliable petroleum product testing.
Product Overview

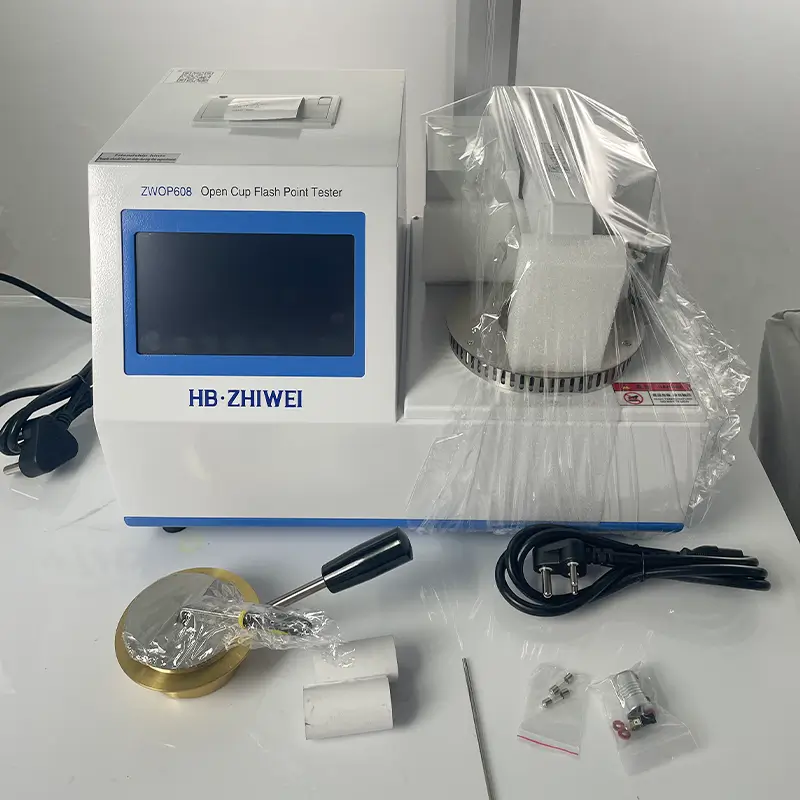

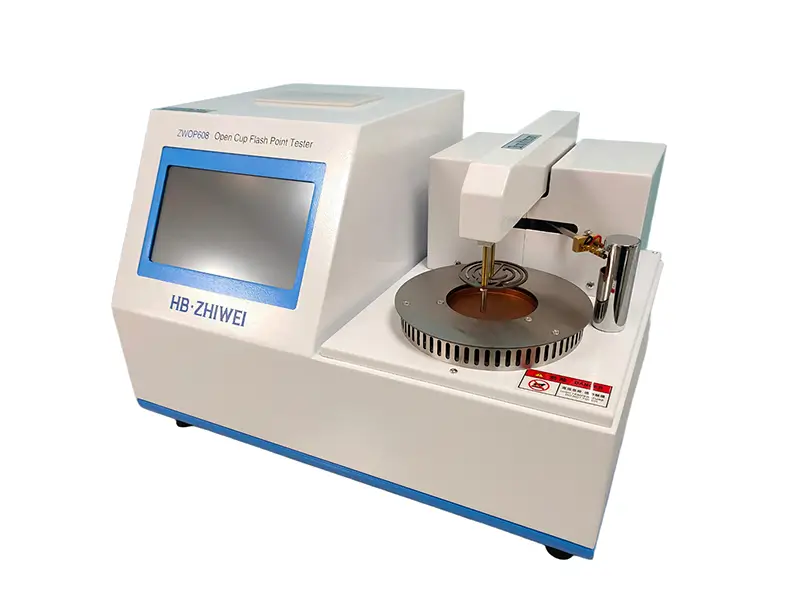

The ZWOP608 Automatic Open Cup Flash Point Tester determines the flash point of petroleum products using the Cleveland open cup method.
Compliant with ASTM D92 and GB/T 3536, it automates sample heating, ignition, flash detection, result correction, cooling, alarm, and printing for efficient petroleum and insulating oil analysis.
Its adaptive PID temperature control and high-speed digital signal processor maintain the specified heating profile, reducing operator workload and improving test consistency. The instrument is suitable for power utilities, petroleum laboratories, railways, aviation, quality-control facilities, and research institutions.
Functions and Value:

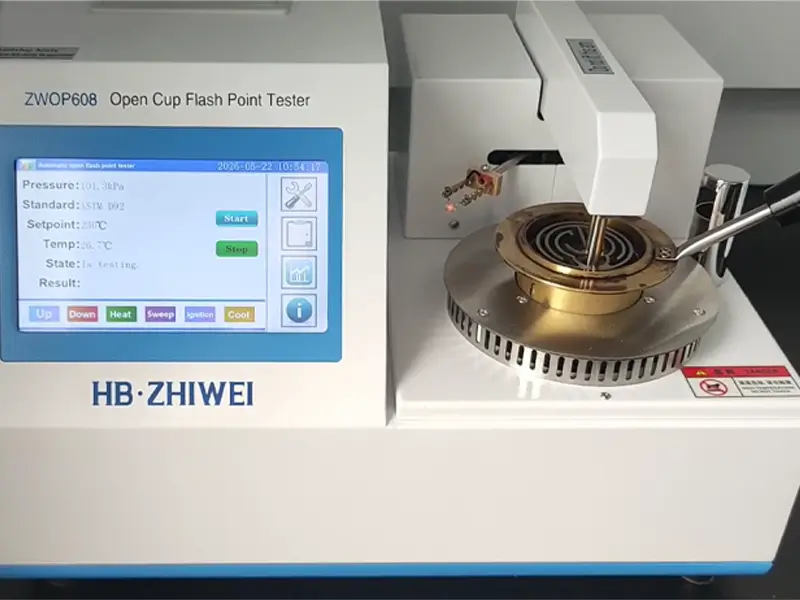

Adopting a 7-inch resolution 1024X600 color touch screen, the operation is intuitive and convenient;
New high-speed digital signal processor, adaptive PID control algorithm;
The entire experimental process, including detection, lid opening, ignition, alarm, cooling, and printing, is automatically completed;
Built in atmospheric pressure automatic detection chip, atmospheric pressure automatic measurement, automatic calibration, and automatic correction of flash point value;
Automatic stop detection and alarm for temperature exceeding value;
Technical Details
| Parameter | Specification |
|---|---|
| Model | ZWOP608 |
| Test Method | Cleveland Open Cup Method |
| Applicable Standards | ASTM D92, GB/T 3536 |
| Measurement Range | Room Temperature to 400°C |
| Display | 7-Inch Color Touchscreen, 1024 × 600 |
| Power Supply | AC 220 V ±11 V, 50 Hz ±2.5 Hz |
| Operating Temperature | Operating Temperature |
| Ambient Humidity | ≤85% RH |
| Weight | Weight |
Model Selection Guide
| Item NO. | Max Current | Measuring Range | Main Features | Recommended Application |
|---|---|---|---|---|
| GDZR-10A | 10A | 100μΩ - 20KΩ | Portable, built-in discharge alarm | Small to medium distribution transformers |
| GDZR-20A | 20A | 10μΩ - 10KΩ | High-speed testing, heat dissipation | Medium-sized power transformers |
| GDZR-40A | 40A | 1μΩ - 2KΩ | Dual-channel measurement, high current | Large-scale power transformers |
| GDZR-40A | Three-Phase 10A | 100μΩ - 10KΩ | Three-phase simultaneous measurement | Yn-type transformers, time-saving |
Recent Work
Parts List
| Item NO. | Max Current | Measuring Range | Main Features | Recommended Application |
|---|---|---|---|---|
| GDZR-10A | 10A | 100μΩ - 20KΩ | Portable, built-in discharge alarm | Small to medium distribution transformers |
| GDZR-20A | 20A | 10μΩ - 10KΩ | High-speed testing, heat dissipation | Medium-sized power transformers |
| GDZR-40A | 40A | 1μΩ - 2KΩ | Dual-channel measurement, high current | Large-scale power transformers |
| GDZR-40A | Three-Phase 10A | 100μΩ - 10KΩ | Three-phase simultaneous measurement | Yn-type transformers, time-saving |
Product Video
Discover how the ZWJD111E BDV Tester simplifies insulating oil diagnostics.
Certificate
Frequently Asked Questions
Contact our engineers for technical support and application guidance.
The tester complies with ASTM D92 and GB/T 3536 for determining the flash point of petroleum products using the Cleveland open cup method.
The ZWOP608 measures from room temperature to 400°C. If the expected flash point is within approximately 10°C above room temperature, external refrigeration or sample pre-cooling is required.
Yes. A built-in atmospheric pressure detection chip automatically measures pressure and applies the required correction to the flash point result.
Yes. Although the test sequence is automatic, an operator should remain present throughout the test. Keep the instrument away from airflow, do not touch hot components, and ensure that suitable fire-extinguishing equipment is available nearby.
