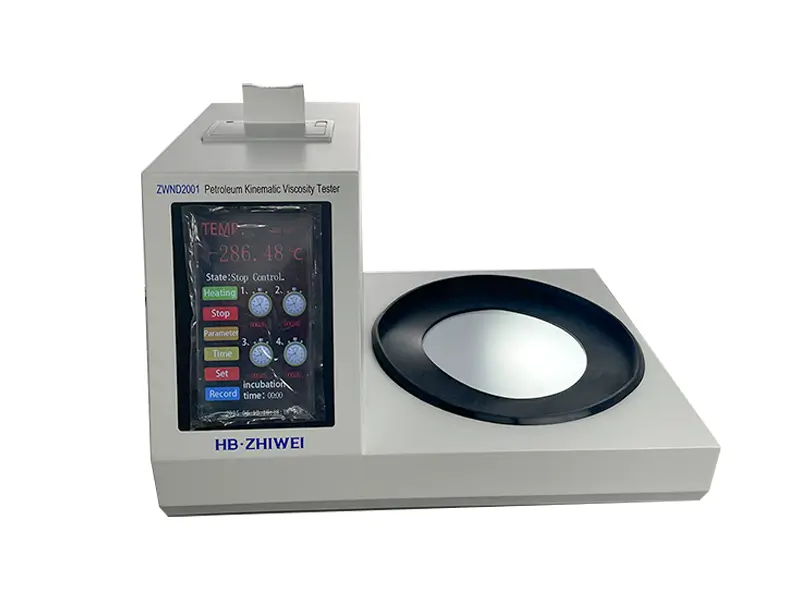

Kinematic Viscosity Tester
The ZWND2001 determines the kinematic viscosity of Newtonian petroleum products according to ASTM D445 and GB/T 265-1988.
It accommodates four capillary viscometers simultaneously and automatically calculates, stores, and prints viscosity results under precise constant-temperature conditions.
Product Overview

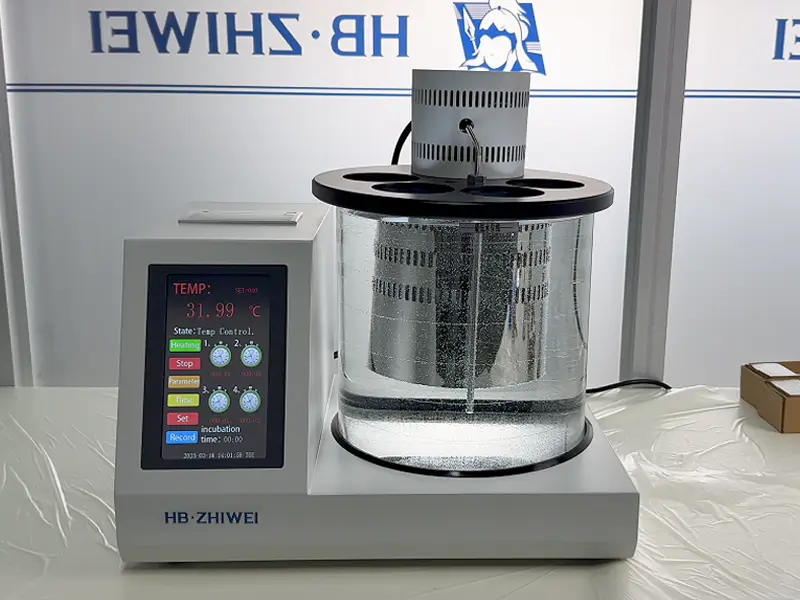

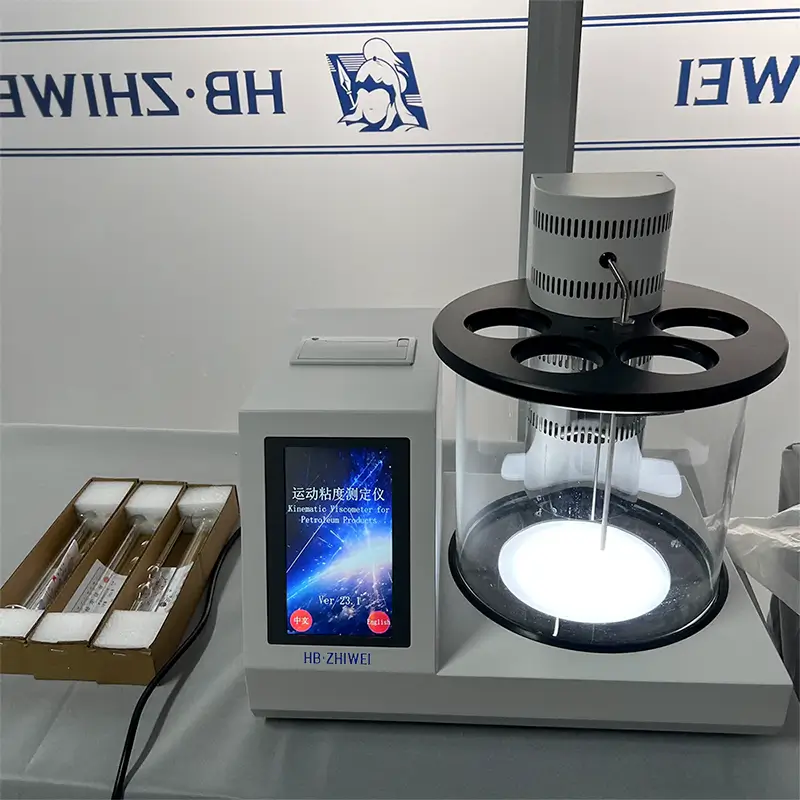

The ZWND2001 Petroleum Kinematic Viscosity Tester measures the time required for a specified volume of liquid to flow through a calibrated glass capillary viscometer under gravity at a controlled temperature. It calculates kinematic viscosity by multiplying the measured flow time by the viscometer constant.
Designed for ASTM D445 and GB/T 265-1988 testing, the instrument combines a constant-temperature bath, four test positions, touchscreen timing, automatic data validation, viscosity calculation, record storage, and thermal printing. It is suitable for petroleum laboratories, oil quality control, power utilities, and research facilities.
Functions and Value:
-
Four-Position Testing: Accommodates up to four glass capillary viscometers at the same bath temperature, allowing multiple petroleum samples to be tested efficiently without mutual interference.
-
Precise Bath Control: Fuzzy PID technology maintains stable temperature conditions for reliable viscosity measurement and also allows the instrument to operate as a general-purpose constant-temperature bath.
-
Flexible Temperature Settings: Supports standard test temperatures of 20°C, 40°C, 50°C, 80°C, and 100°C, as well as user-defined temperatures above ambient.
-
Automatic Viscosity Calculation: Calculates kinematic viscosity in mm²/s from the measured flow time and the entered capillary viscometer constant, reducing manual calculation errors.
-
Repeatability Validation: Supports one to four timing measurements for each viscometer. During standard testing, the system evaluates timing consistency, rejects out-of-tolerance values, and averages the valid results.
-
Adjustable Test Cycles: Operators can select fewer timing cycles for a rapid estimate or four cycles for a more rigorous viscosity result according to the standard method.
-
Individual Viscometer Parameters: The capillary diameter and calibration constant can be entered separately for each of the four test positions, supporting different viscometer configurations.
-
Touchscreen Operation: The color LCD touchscreen clearly displays real-time bath temperature, set temperature, four independent timers, test parameters, and calculated results.
-
Integrated Data Management: Stores up to 2,000 test records, including the test number, date, time, and kinematic viscosity result for convenient traceability.
-
Automatic Result Printing: The built-in thermal printer can output sample information, test time, viscometer parameters, and calculated kinematic viscosity after measurement.
Technical Details
| Parameter | Specification |
|---|---|
| Test Method | Glass Capillary Viscometer Method |
| Applicable Standards | ASTM D445, GB/T 265-1988 |
| Temperature Range | Above Ambient to 150°C |
| Standard Temperature Settings | 20°C, 40°C, 50°C, 80°C, 100°C |
| Temperature Control Accuracy | 0.01°C |
| Test Positions | 4 |
| Timing Range | 0 to 999 s |
| Timing Resolution | 0.1 s |
| Timing Cycles | 1 to 4 |
| Storage Capacity | 2,000 Test Records |
| Power Supply | AC 220 V ±5%, 50 Hz ±5% |
| Rated Power | 1600 W |
| Operating Temperature | 5°C to 35°C |
| Ambient Humidity | 10% to 80% RH |
Model Selection Guide
| Item NO. | Max Current | Measuring Range | Main Features | Recommended Application |
|---|---|---|---|---|
| GDZR-10A | 10A | 100μΩ - 20KΩ | Portable, built-in discharge alarm | Small to medium distribution transformers |
| GDZR-20A | 20A | 10μΩ - 10KΩ | High-speed testing, heat dissipation | Medium-sized power transformers |
| GDZR-40A | 40A | 1μΩ - 2KΩ | Dual-channel measurement, high current | Large-scale power transformers |
| GDZR-40A | Three-Phase 10A | 100μΩ - 10KΩ | Three-phase simultaneous measurement | Yn-type transformers, time-saving |
Recent Work
Parts List
| Item NO. | Max Current | Measuring Range | Main Features | Recommended Application |
|---|---|---|---|---|
| GDZR-10A | 10A | 100μΩ - 20KΩ | Portable, built-in discharge alarm | Small to medium distribution transformers |
| GDZR-20A | 20A | 10μΩ - 10KΩ | High-speed testing, heat dissipation | Medium-sized power transformers |
| GDZR-40A | 40A | 1μΩ - 2KΩ | Dual-channel measurement, high current | Large-scale power transformers |
| GDZR-40A | Three-Phase 10A | 100μΩ - 10KΩ | Three-phase simultaneous measurement | Yn-type transformers, time-saving |
Product Video
Discover how the ZWJD111E BDV Tester simplifies insulating oil diagnostics.
Certificate
Frequently Asked Questions
Contact our engineers for technical support and application guidance.
The instrument is designed to measure the kinematic viscosity of liquid petroleum products that behave as Newtonian fluids using calibrated glass capillary viscometers.
Yes. The constant-temperature bath provides four independent viscometer positions, allowing up to four samples to be tested under the same temperature conditions.
The instrument multiplies the measured capillary flow time by the entered viscometer constant. The resulting kinematic viscosity is displayed in mm²/s.
Users can select one to four timing cycles. For rigorous testing, the instrument can evaluate repeated readings, remove values outside the permitted tolerance, and calculate the average of the valid results.
