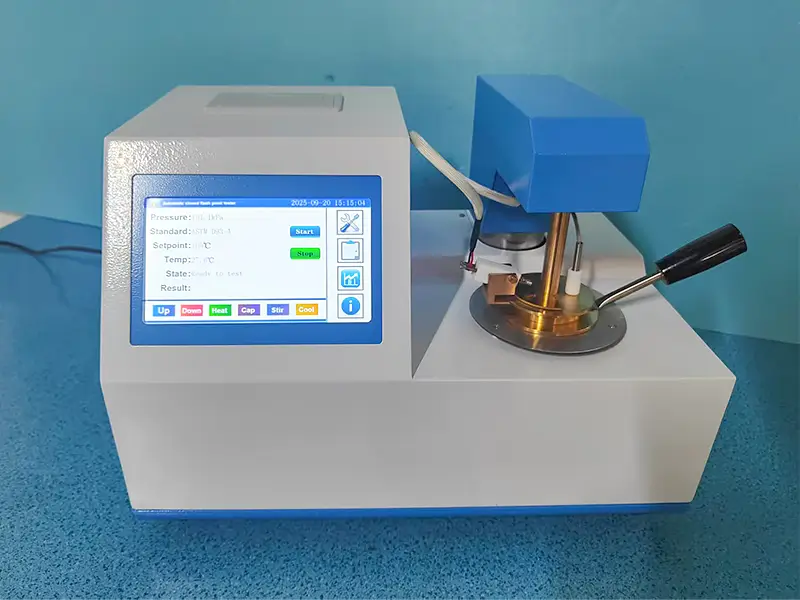

Closed-Cup Flash Point Tester
The ZWCP606 is an automatic closed-cup flash point tester for petroleum products, with a measurement range up to 400°C.
It integrates automatic heating, ignition, flash detection, atmospheric pressure correction, cooling, and result printing for reliable ASTM D93 testing.
Product Overview
The ZWCP606 Closed-Cup Flash Point Tester determines the flash point of petroleum products using the closed-cup method. Designed according to GB/T 261-2021 and ASTM D93, it automatically controls sample heating, ignition, flash detection, result processing, cooling, and printing.
With adaptive PID temperature control, automatic atmospheric pressure correction, and a 7-inch color touchscreen, the tester helps reduce manual operation and improve test repeatability. It is suitable for railway, aviation, power, petroleum, and scientific research laboratories.
Functions and Value:
Adopting a 7-inch resolution 1024X600 color touch screen, the operation is intuitive and convenient;
Adopt new high-speed digital signal processor and adaptive PID control algorithm;
Detection, cover opening, ignition, alarm, cooling, printing, the whole experimental process is completed automatically;
Automatic detection of atmospheric pressure and automatic correction of test results;
Automatically stop detection and alarm when the temperature exceeds the value;
Technical Details
| Parameter | Specification |
|---|---|
| Model | ZWCP606 |
| Test Method | Closed-Cup Method |
| Applicable Standards | GB/T 261-2021, ASTM D93 |
| Measurement Range | Room Temperature to 400°C |
| Display | 7-Inch Color Touchscreen |
| Display Resolution | 1024 × 600 |
| Temperature Control | Adaptive PID Control |
| Power Supply | AC 220 V ±11 V, 50 Hz ±2.5 Hz |
| Operating Temperature | Room Temperature to 40°C |
| Ambient Humidity | ≤85% RH |
| Weight | 18 kg |
Model Selection Guide
| Item NO. | Max Current | Measuring Range | Main Features | Recommended Application |
|---|---|---|---|---|
| GDZR-10A | 10A | 100μΩ - 20KΩ | Portable, built-in discharge alarm | Small to medium distribution transformers |
| GDZR-20A | 20A | 10μΩ - 10KΩ | High-speed testing, heat dissipation | Medium-sized power transformers |
| GDZR-40A | 40A | 1μΩ - 2KΩ | Dual-channel measurement, high current | Large-scale power transformers |
| GDZR-40A | Three-Phase 10A | 100μΩ - 10KΩ | Three-phase simultaneous measurement | Yn-type transformers, time-saving |
Recent Work
Parts List
| Item NO. | Max Current | Measuring Range | Main Features | Recommended Application |
|---|---|---|---|---|
| GDZR-10A | 10A | 100μΩ - 20KΩ | Portable, built-in discharge alarm | Small to medium distribution transformers |
| GDZR-20A | 20A | 10μΩ - 10KΩ | High-speed testing, heat dissipation | Medium-sized power transformers |
| GDZR-40A | 40A | 1μΩ - 2KΩ | Dual-channel measurement, high current | Large-scale power transformers |
| GDZR-40A | Three-Phase 10A | 100μΩ - 10KΩ | Three-phase simultaneous measurement | Yn-type transformers, time-saving |
Product Video
Discover how the ZWJD111E BDV Tester simplifies insulating oil diagnostics.
Certificate
Frequently Asked Questions
Contact our engineers for technical support and application guidance.
The tester is designed according to GB/T 261-2021 and ASTM D93 for determining the flash point of petroleum products using the closed-cup method.
The ZWCP606 has a measurement range from room temperature to 400°C. When the expected flash point is close to room temperature, sample cooling may be required before testing.
Yes. The instrument automatically detects atmospheric pressure and applies the required correction to the measured flash point result.
Place the tester on a level surface without airflow, clean the sample cup, fill the sample to the specified scale line, and ensure that the flash sensor and ignition head are clean and correctly installed. The furnace and sample cup should be cooled to room temperature before continuous testing.
