Transformer Oil Acid Tester
A fully automatic transformer oil acidity tester covering 0.002–1 mg KOH/g, designed with reference to ASTM D974 and IEC 62021-2.
Product Function

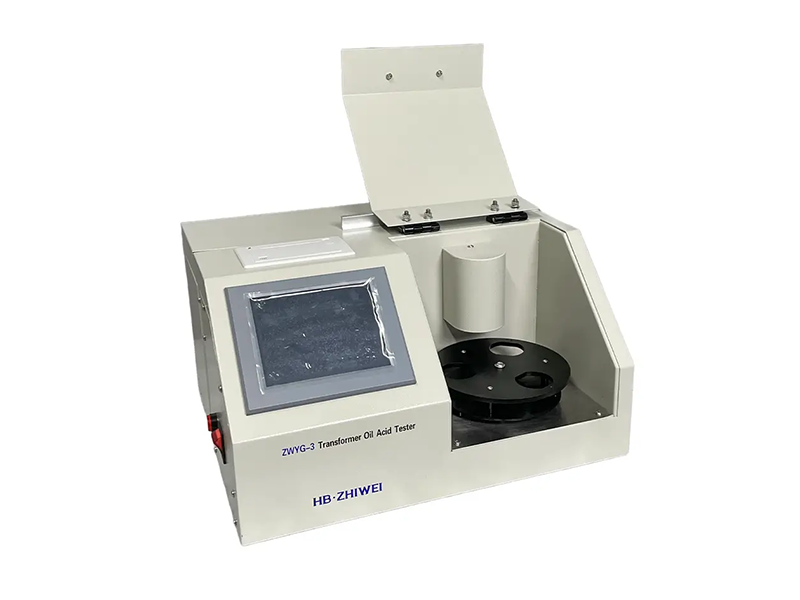

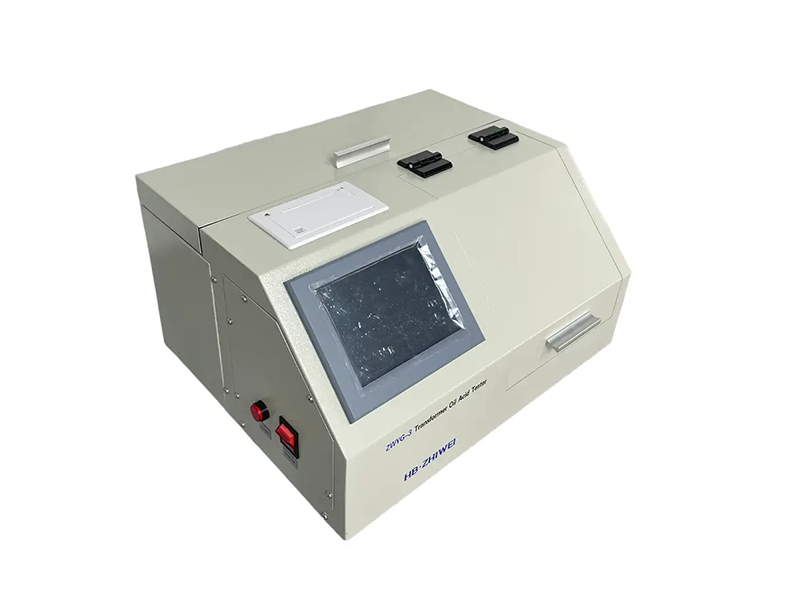

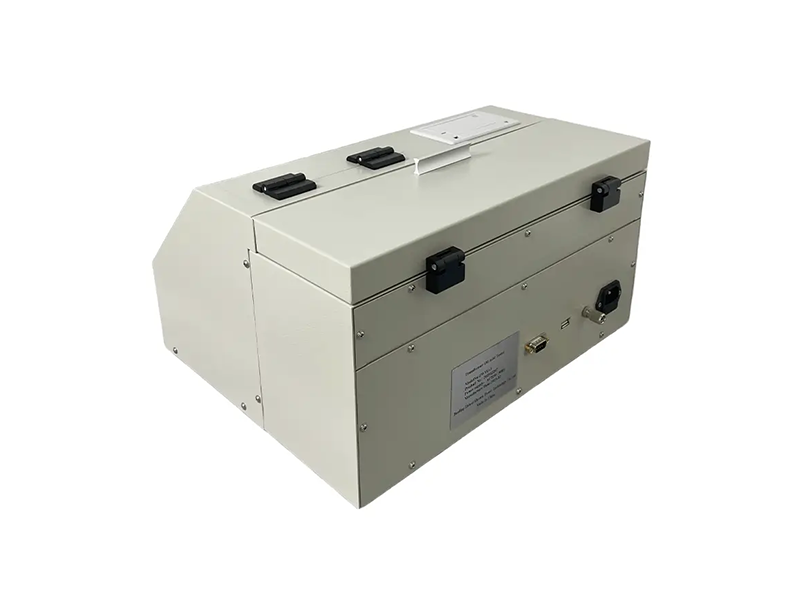

The ZWYG-3 Transformer Oil Acid Number Tester automatically determines the acidity and neutralization number of insulating oil using the extraction method.
Designed with reference to ASTM D974 and IEC 62021-2, it provides accurate acid value testing for transformer oil used in electrical equipment rated up to 500 kV. Its automated workflow reduces manual reagent handling, improves repeatability, and increases laboratory productivity.
Functions and Value:
-
Automatic Sample Processing: Automatically locates each sample cup and completes reagent injection, extraction, titration, calculation, and result output with minimal operator intervention.
-
Three-Sample Operation: Tests one to three oil samples after a single startup, improving throughput for power utility and transformer oil laboratories.
-
Low-Level Acid Detection: Measures acid numbers from 0.002 to 1 mg KOH/g, supporting sensitive assessment of insulating oil oxidation and deterioration.
-
Automatic Blank Correction: Performs blank titration of the extraction solution and automatically deducts its background value, reducing the influence of reagent changes on test results.
-
User Calibration: Supports recalibration and verification with standard acid solution, allowing users to compensate for changes in neutralizing solution concentration.
-
Improved Repeatability: Achieves repeatability within 0.005 mg KOH/g to support reliable comparison of oil samples during preventive maintenance.
-
Reduced Reagent Exposure: Automated liquid delivery and titration minimize direct contact with oil samples and chemical reagents, improving laboratory safety.
-
Automatic Cleaning: The integrated cleaning program flushes the liquid circuit after testing, simplifying routine maintenance and helping prevent cross-contamination.
-
Data Management: Stores historical test results for on-screen review, deletion, printing, and export to a USB storage device.
-
Integrated Printing: A built-in printer generates test reports directly, supporting recordkeeping and quality-control documentation.
Technical Details
| Parameter | Specification |
|---|---|
| Product Type | Automatic transformer oil acid number tester |
| Test Method | Extraction titration |
| Reference Standards | ASTM D974, IEC 62021-2 |
| Test Range | 0.002 to 1 mg KOH/g |
| Test Error | ≤±0.005 mg KOH/g |
| Repeatability | ≤0.005 mg KOH/g |
| Samples per Run | 1 to 3 |
| Sample Applications | Transformer oil and electrical insulating oil |
| Applicable Equipment Rating | Up to 500 kV |
| Blank Correction | Automatic |
| Calibration | Standard acid recalibration and verification |
| Result Output | Display, storage, printing, and USB export |
| Cleaning Function | Automatic instrument cleaning |
| Power Supply | AC 220 V, 50 Hz |
| Rated Power | 50 W |
| Operating Temperature | 10°C to 45°C |
| Relative Humidity | ≤85% RH |
